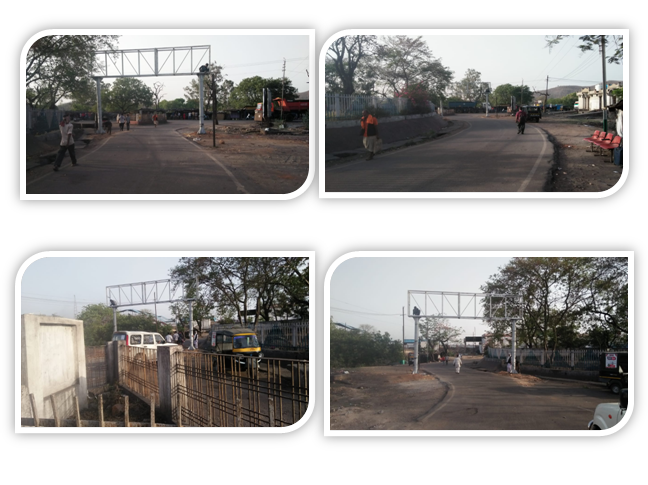

Gantry
Design, fabrication, supply, installation, testing and commissioning of Tabular iron structure (Gantry) for entrance gate, Height from ground level 15 feet, width 28 feet, made of steel pipe NB 250, Angle, Square hollow section, Rectangular hollow section Nuts-bolt, and washers as per the approved drawing, Erection to be done on proper foundation as per the approved drawing. Including supply of all required materials eg foundation bolts, cement concrete (1:3:6) etc as per the direction of the site incharge.
We are the best in Design, fabrication, supply, installation, testing and commissioning of Tabular iron structure (Gantry) for entrance gate in Ranchi.
Work Completed at the following locations: Parasnath, Daltonganj, Dhanbad, Garhwa Road, Renukoot, Barkakana, Koderma, Singrauli
|
 |
 |

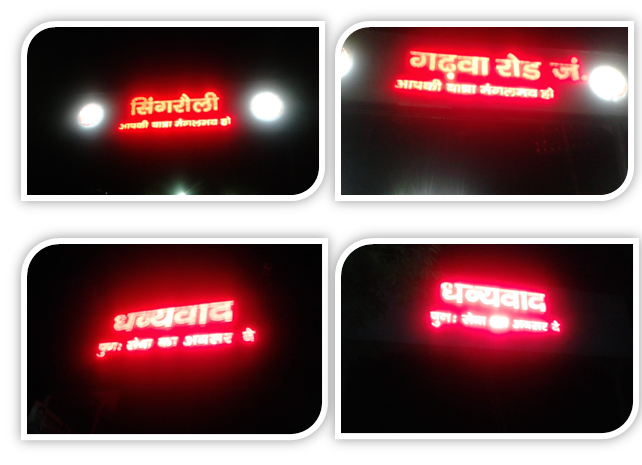

Welcome Display Board
Design, Fabrication, Supply, Installation, Testing and commissioning of 3 mm Red A-cast acrylic sheet alphabets of size, 19 inch height, for Station Name as per Annexure(i) and Dhanyawaad” in Hindi, with 2.5 inch raising, and backlit with LED MODULES WITH FROSTED CAP optical 5630/3528 Red or equivalent Samsung with minimum 3 years warranty. (The complete LED name board shall confirm to RDSO).
Design, fabrication, supply, installation, testing and commissioning of “Indian Railway Logo”, 2.5” raising with 3 feet dia along with acrylic letters and Alphabets and backlit with LED MODULES WITH FROSTED CAP opitical 5630/3528 Red or equivalent Samsung with min 3 years warranty.
Design, Fabrication, Supply, Installation, testing and commissioning board of 3 mm white ACP sheet mounted on 1 inch square iron frame with 24 gauze G.I. sheet back cover, size-28 feet long x 6 feet height, to be installed on entrance gate as per the direction of the site incharge.
|
| Work Completed for Welcome Display Board at the following locations: Parasnath, Daltonganj, Dhanbad, Garhwa Road, Renukoot, Barkakana, Koderma, Singrauli |
 |
 |
|
|
